Re: Carl's 98 auto AWD project Black Magic

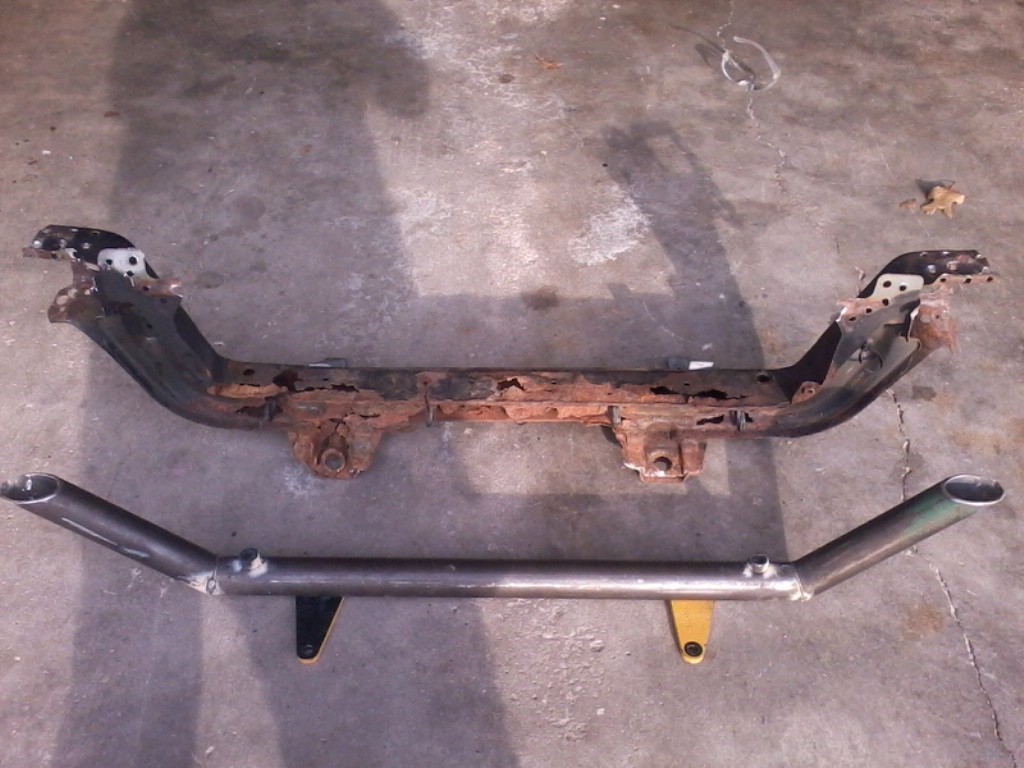

I tacked up the tubular core suport today. I made the lower radiator mounts from some lifting hooks we take off of engines at work and made some mounts for the a/c condensor. I am going to bring it to my Dads to weld it up with his MIG and drill the holes that will mount the North/South crossmember that runs under the motor/trans. Im not sure what I am going to do for FMIC mounts since I plan on upgradeing my Intercooler before spring.
Attached Thumbnails
Click image for larger version

Name:	Photo0373.jpg
Views:	542
Size:	96.0 KB
ID:	13130   Click image for larger version

Name:	Photo0374.jpg
Views:	529
Size:	479.8 KB
ID:	13131   Click image for larger version

Name:	Photo0375.jpg
Views:	564
Size:	90.1 KB
ID:	13132

Click image for larger version

Name:	Photo0376.jpg
Views:	534
Size:	408.4 KB
ID:	13133   Click image for larger version

Name:	Photo0377.jpg
Views:	534
Size:	471.1 KB
ID:	13134   Click image for larger version

Name:	Photo0379.jpg
Views:	546
Size:	155.9 KB
ID:	13135

__________________
Project Black Magic http://mitsustyle.com/forums/showthread.php?t=30786
11.35 @ 120mph

Last edited by carltalon; 12-05-2012 at 05:55 PM..
