Re: the evo 3 swap parts are coming

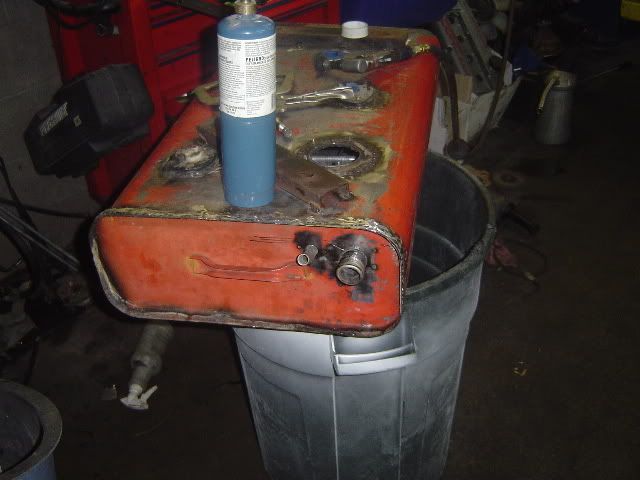

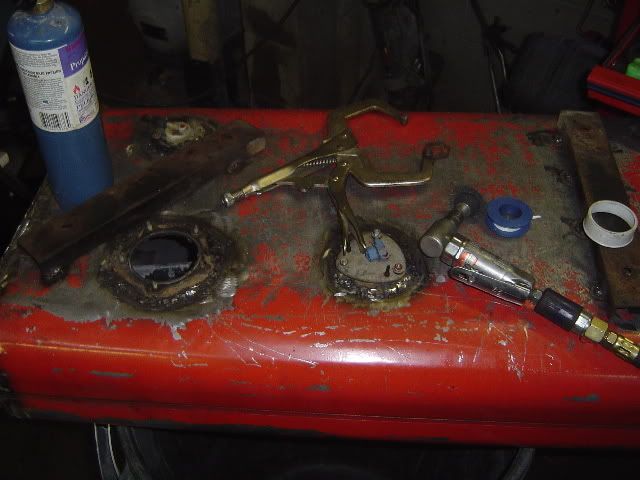

got some more done on the tank it is fully welded back together now just have to put some finninshing work on it. Put some brackets on the top to hold it down from the new floor so it does not tuch the pump,sending unit,and breather
http://i122.photobucket.com/albums/o...evo/evo139.jpg
http://i122.photobucket.com/albums/o...evo/evo140.jpg

Re: the evo 3 swap parts are coming

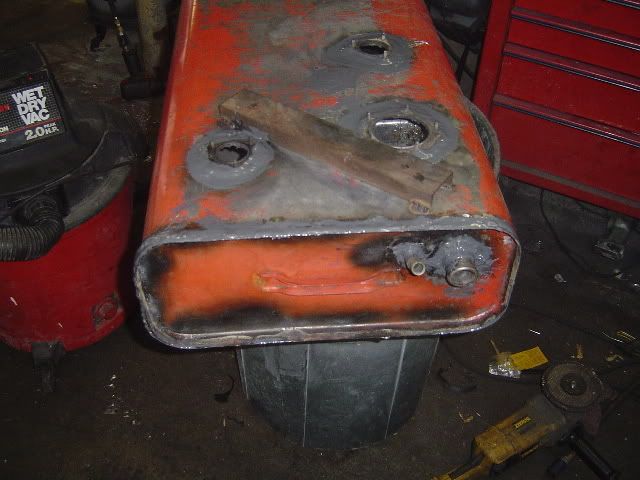

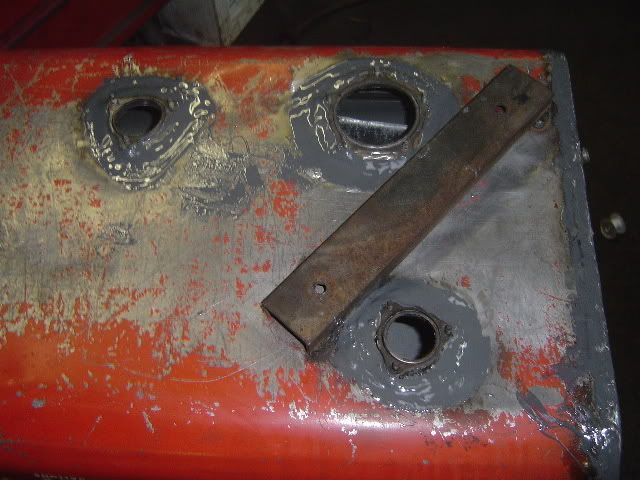

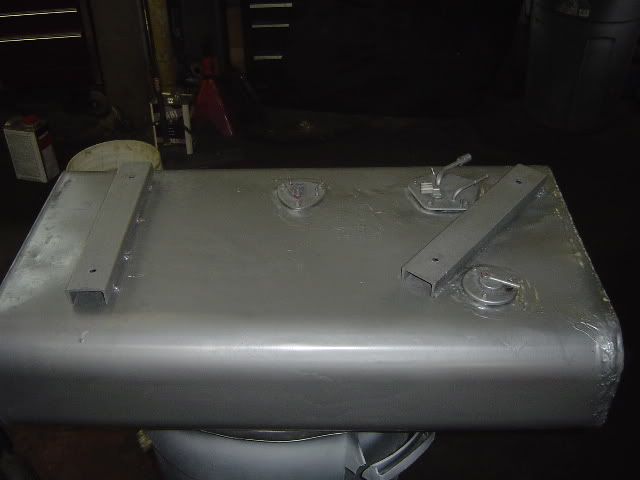

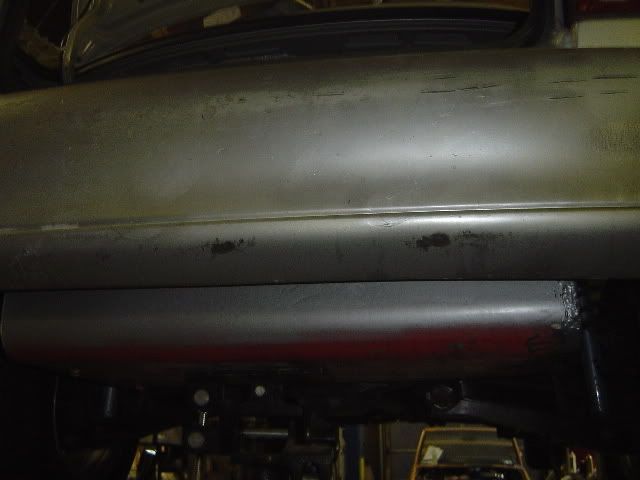

got the tank all done today,it was all seamed with soldered then gas tank emoxy sealer around everthing that was weled then soldered. Just ave to make some mounts for it now and cut up the fill neck and reshape it to fit were the new tanks is and rockgard the bottom of the tank.
http://i122.photobucket.com/albums/o...evo/evo141.jpg
http://i122.photobucket.com/albums/o...evo/evo142.jpg
http://i122.photobucket.com/albums/o...evo/evo143.jpg
http://i122.photobucket.com/albums/o...evo/evo144.jpg

Re: the evo 3 swap parts are coming

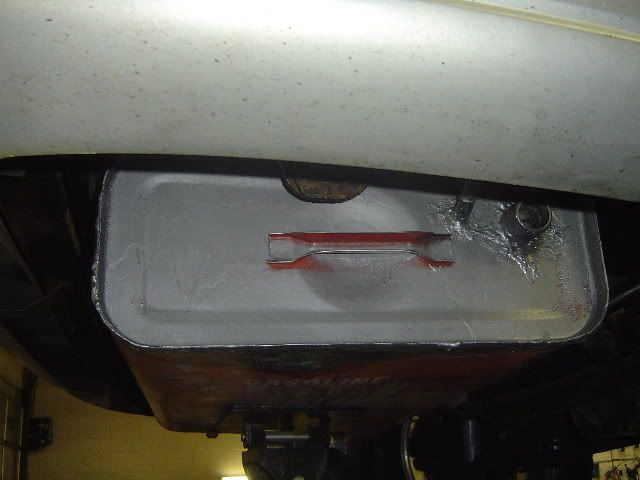

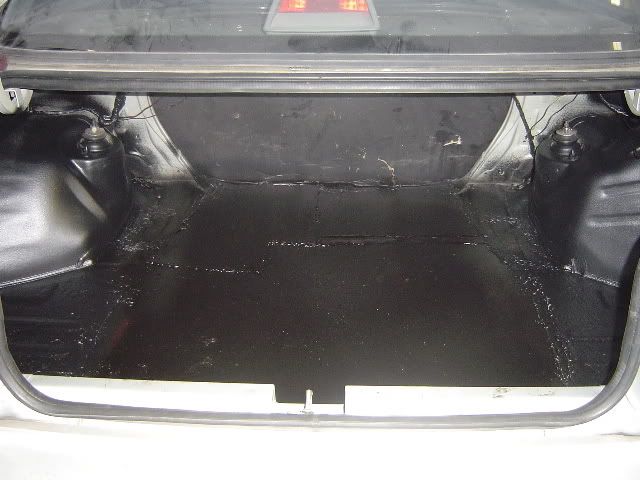

last pic of the tank today. Also rockgarded the trunk floor and the wheel wells. I have a panel made for the floor already. I will also be making sidepanels and a front panel to make the trunk look a lot nicer when it is done.
http://i122.photobucket.com/albums/o...evo/evo145.jpg
http://i122.photobucket.com/albums/o...evo/evo146.jpg

Re: the evo 3 swap parts are coming


God, i could cream myself over this project. You should keep a running total on what you spend. I'd love to do a similar project in the future but possibly on a different car.

When do you expect it to be ready?

Re: the evo 3 swap parts are coming


I am keeping track of what I spend on this. it should be running in a few days just have to mount the tank and extend the wires to it and the fuel lines to it and rebuild the fuel neck to fit in the back.

Re: the evo 3 swap parts are coming


Loving that fuel tank! Good thing it says "Gasoline" on the bottom, just in case anyone is a little confused!

Re: the evo 3 swap parts are coming


Yeah, I like that too, and the handle on the side. Keep those, it adds a certain flair.

Re: the evo 3 swap parts are coming


thanks

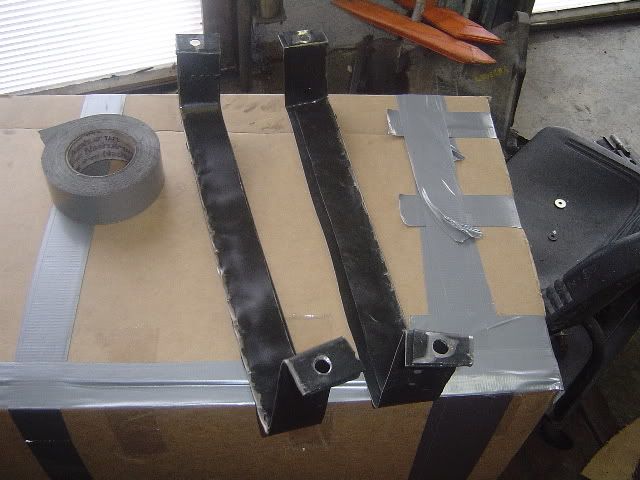

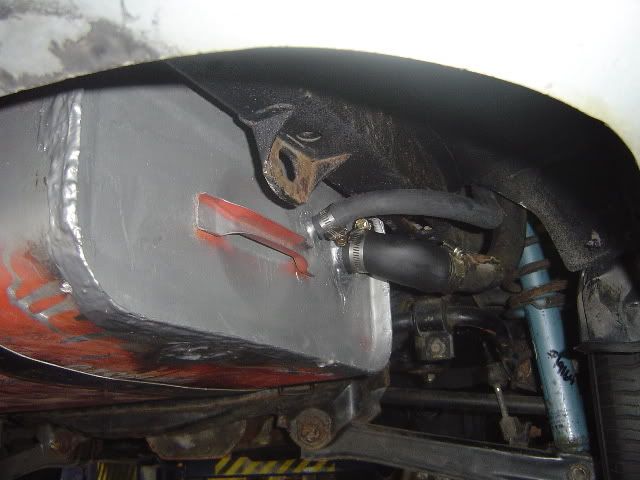

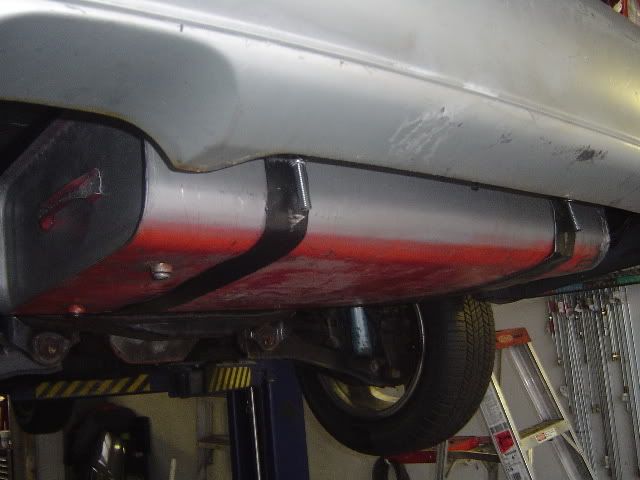

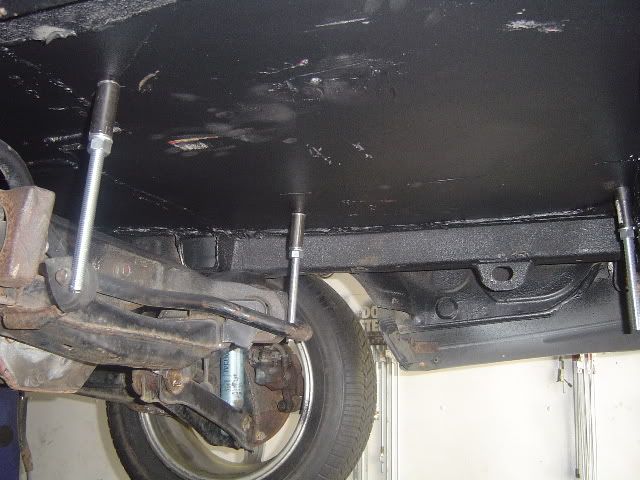

got the tank straps made,rebuilt the fuel fill aqnd breather tube,put in the bolts for the tank with the spacers. Got it all mounted in the car and put 1/2 gal of gas in it and it held in the tank so it is all good.
http://i122.photobucket.com/albums/o...evo/evo147.jpg
http://i122.photobucket.com/albums/o...evo/evo148.jpg
http://i122.photobucket.com/albums/o...evo/evo149.jpg
http://i122.photobucket.com/albums/o...evo/evo150.jpg

Re: the evo 3 swap parts are coming

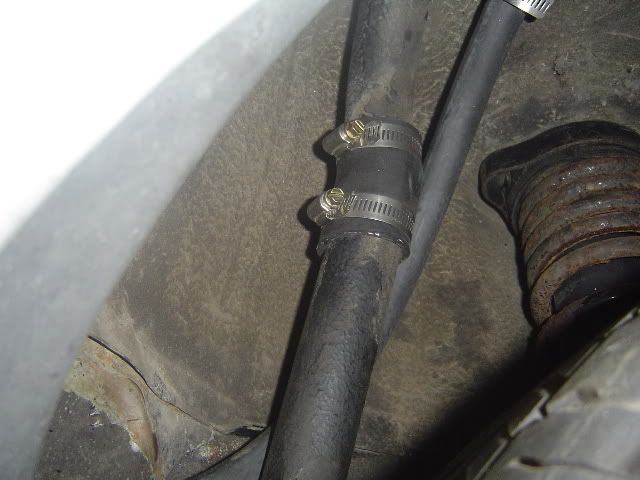

last of the tank
http://i122.photobucket.com/albums/o...evo/evo151.jpg

Re: the evo 3 swap parts are coming


well here we go. I now have a running and driving rhd evolution III
The is running after some problems with the injectors not working with the ecu that was chiped so I put in the ecu that I got with the 2nd clip and strated right up. I just have to get the hks b.o.v. reserced in to the intake it wants to die when it dumps off. I got it moved to one of the other bays and put lub in the tranny,t.c., and rear end and I drove it illegaly down the street and liped it back sence I ran out of gas.
click the pic for the video to play
http://i122.photobucket.com/albums/o...h_MOV01051.jpg

Re: the evo 3 swap parts are coming


got it all figuared out what I spent on it

spent 7796.31 on the car
sold so far 2429.00 (still have a extra evo motor)
total so far on the evo 5367.31

Re: the evo 3 swap parts are coming


I was going to be lazy and post a congrats in the other thread. But I seen more photos here. Great to see it run. Now finish it up man.

Re: the evo 3 swap parts are coming


man this car sucks, I could have spent that kind of cash on something more worth while. Like asian twins for your wedding or something, but seriously it drives quite nice, just a lil weird to ride on the left side.

Re: the evo 3 swap parts are coming


How much was one front clip? (about).

Re: the evo 3 swap parts are coming


Now a video of you driveing it.

Re: the evo 3 swap parts are coming


Now a vidoe of you driveing it.

Re: the evo 3 swap parts are coming


Can't wait to see the finished product! Looks great, I am having tons of fun watching it all go together. You just gave me a whole new love for evo IIIs.

Re: the evo 3 swap parts are coming


the clips were
1. 2500.00 shipped from tx ((just the front clip)
2. 2800.00 shipped from ga (with the rear end and drrive shaft)

will get video when I get a 3in down pipe and make a exaust for it sence it is way to loud with just the stock down pipe on it now

Re: the evo 3 swap parts are coming

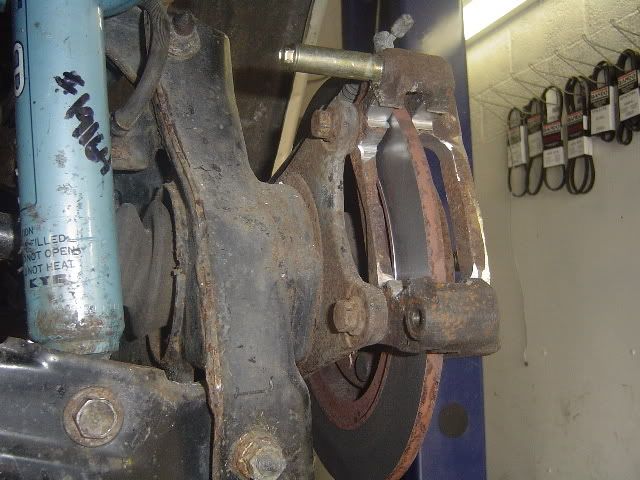

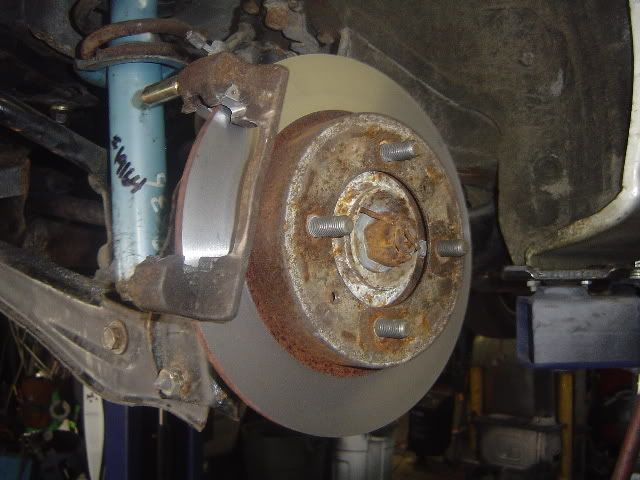

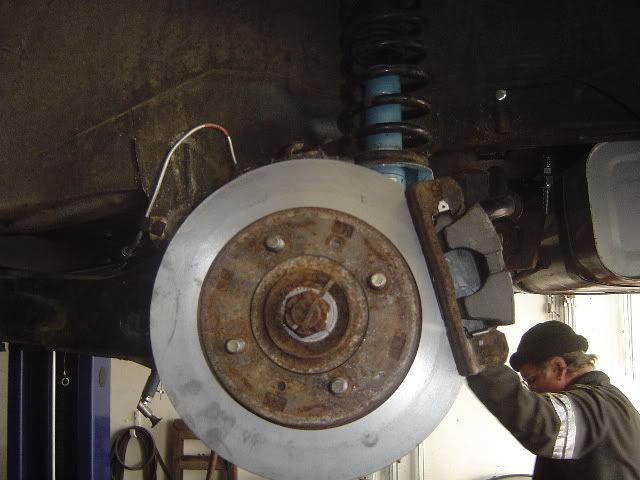

got the 1g gsx brakes on the car with the evo turned rotors and the mirage pads. I had to mod to get the brakes on sence the stock evo calpers were junk and we were unable to get replacment mirage calapers.
what was done.

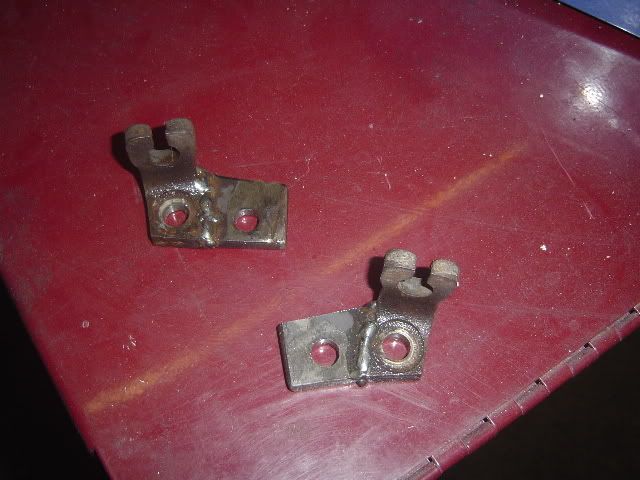

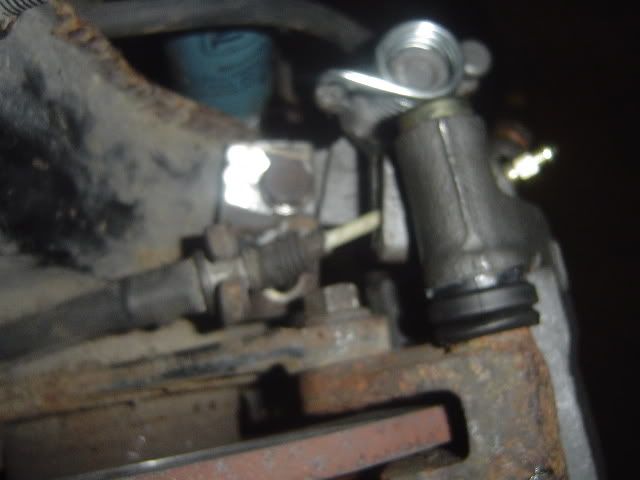

grinded on the brackets to get the mirage pads to fit better,made plates to move the location of the ebrake cable sence they were diffrent.
http://i122.photobucket.com/albums/o...o/evo152-1.jpg
http://i122.photobucket.com/albums/o...evo/evo153.jpg
http://i122.photobucket.com/albums/o...evo/evo154.jpg
http://i122.photobucket.com/albums/o...evo/evo155.jpg

Re: the evo 3 swap parts are coming


http://i122.photobucket.com/albums/o...evo/evo156.jpg
http://i122.photobucket.com/albums/o...evo/evo157.jpg
