Re: Project Lex
Looking sweet dude!
|
Re: Project Lex
Quote:
|
Re: Project Lex
Quote:
|
Re: Project Lex
LOL at the sites moto "we'll make your Sh*t f*cking ridiculous"
|
Re: Project Lex
2 Attachment(s)

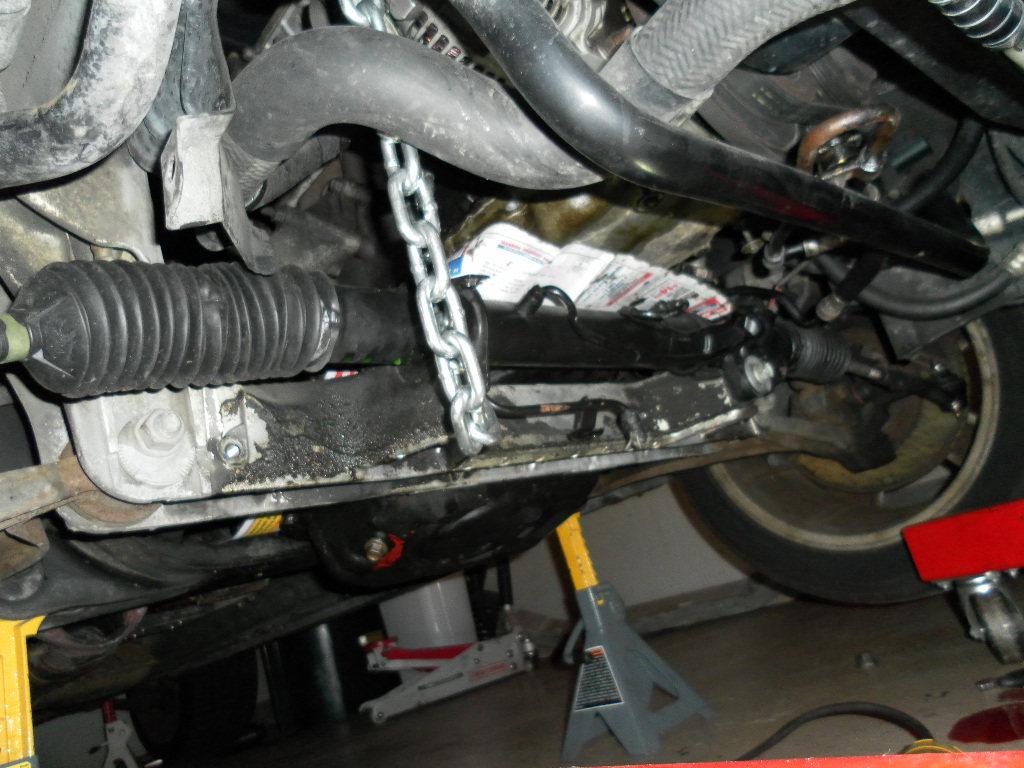

Didn't get a whole lot done. What I discovered is it appears to be impossible to completely remove the lower oil pan without either removing the engine, or removing this big arse cross-member. I needed about another 1/4" but couldn't jack the motor up any further to get that extra little bit. Oh well.
I was however able to just drop it as far as it will drop, and can slide some newspaper in there. You can see where I circled, that's where I need to drill for the oil drain line. So the newspaper should catch almost all of the metal flakes from getting into the lower oil pan. Now just need to get a right angle drill, a Uni-bit, and that should take care of that. http://mitsustyle.com/forums/attachm...1&d=1302049698 http://mitsustyle.com/forums/attachm...1&d=1302049698 |
Re: Project Lex
Well I've been stuck in Naw'lens for the past few weeks so haven't been able to make much progress. But with the extra money I'm making, decided to spend a little bit on a turbo blanket to keep things as cool as possible. Very excite!
$85 shipped http://cgi.ebay.com/ebaymotors/ws/eB...m=300434923446 |
Re: Project Lex
Just read back and got caught up. Awesome progress!
|
Re: Project Lex
Git that thing goin!
|
Re: Project Lex
Quote:
|
Re: Project Lex
4 Attachment(s)
Got home from Naw'lens today.

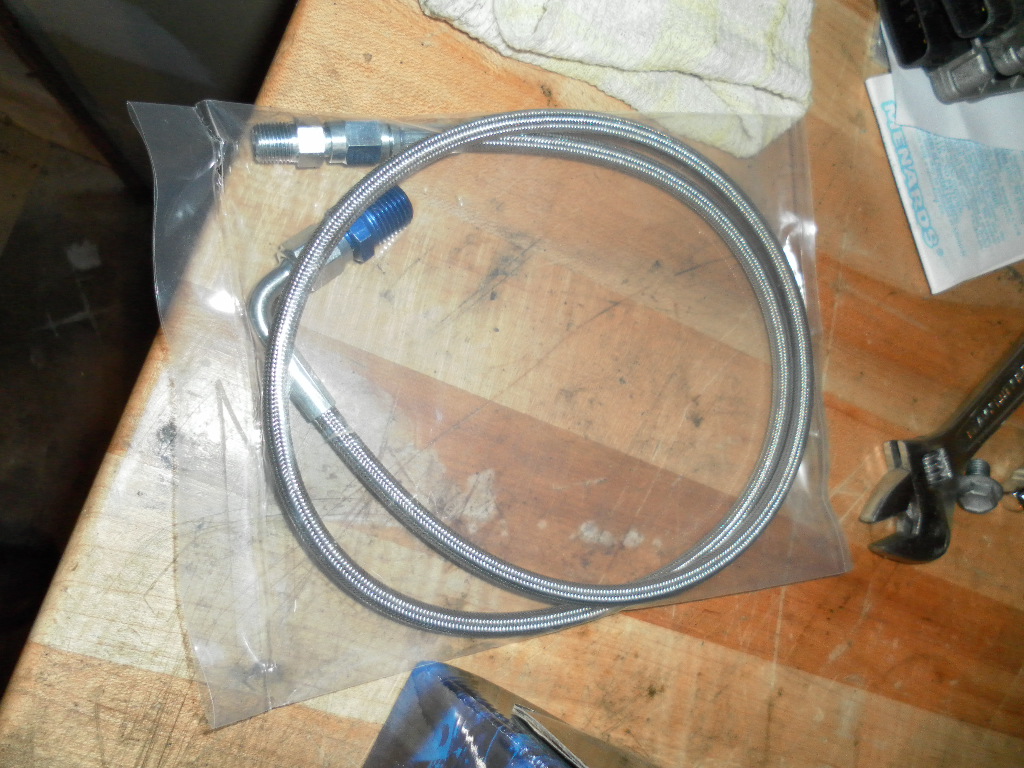

Went to MAPerformance and picked up a couple things as well. As always, thanks for the great prices guys! Turbosmart Compgate 40mm: http://mitsustyle.com/forums/attachm...1&d=1303955594 Oil Feedline Kit: http://mitsustyle.com/forums/attachm...1&d=1303955594 Also had some parts waiting for me in the mail. Time to get some work done!! Ebay Gasket kit: http://mitsustyle.com/forums/attachm...1&d=1303955594 2 used ignitors from Ebay (one to replaced my burnt one, and one for a spare): http://mitsustyle.com/forums/attachm...1&d=1303955594 |
Re: Project Lex
8 Attachment(s)

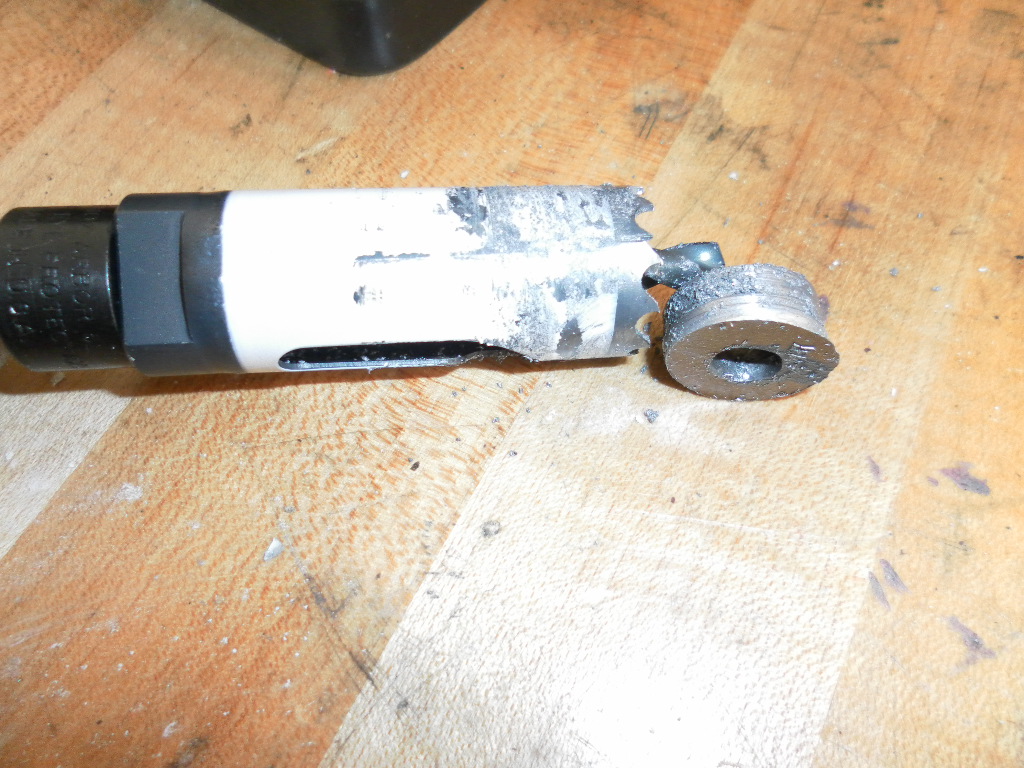

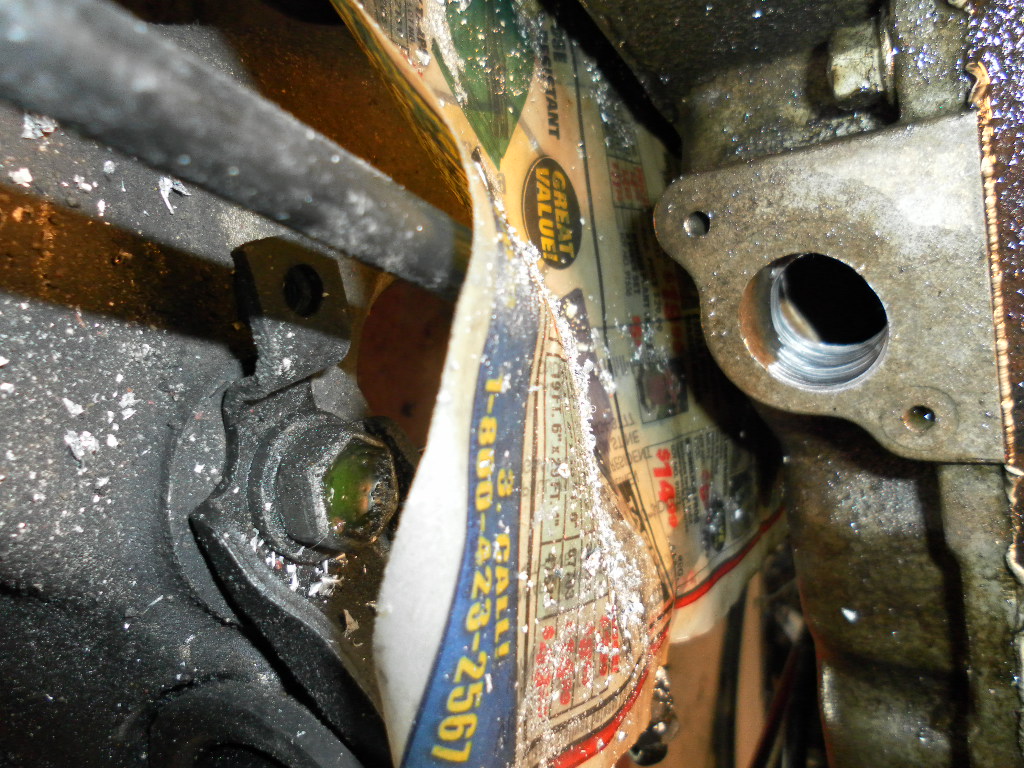

Not too much to update. But I've gotten the oil drain hole drilled out with a 7/8" hole saw. And the two bolt holes are tapped (M6x1.0).

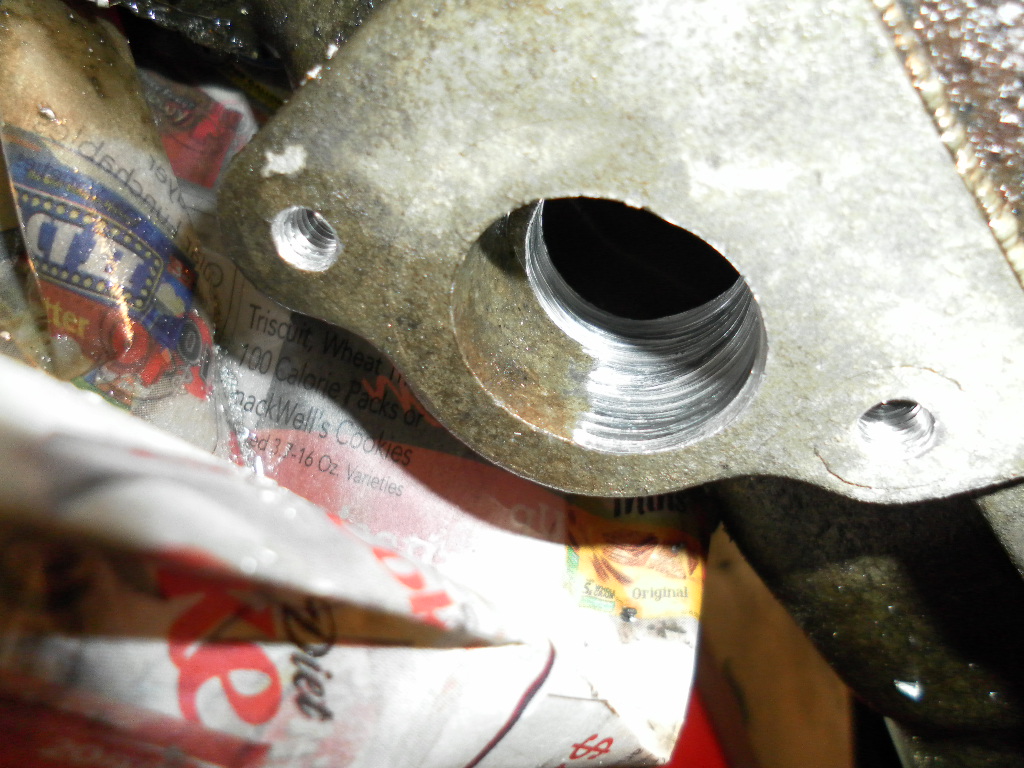

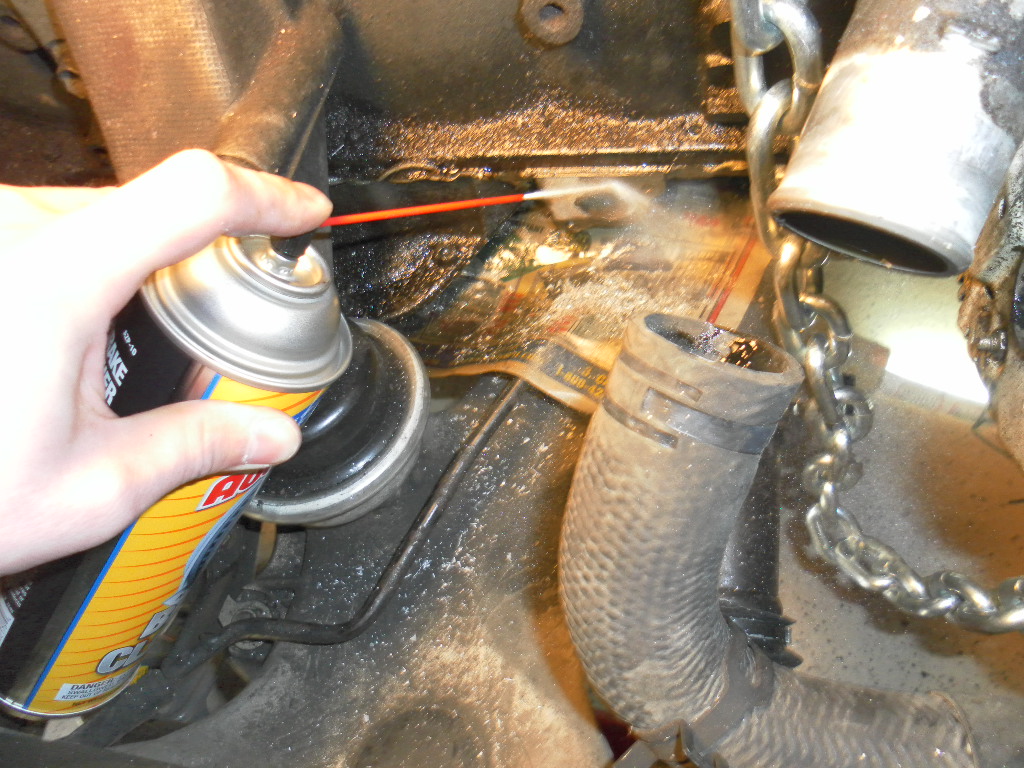

Here's some pics: Drilling the hole http://mitsustyle.com/forums/attachm...1&d=1304556698 http://mitsustyle.com/forums/attachm...1&d=1304556698 Hole drilled: http://mitsustyle.com/forums/attachm...1&d=1304556698 Cleaning with Brake Cleaner: http://mitsustyle.com/forums/attachm...1&d=1304556698 http://mitsustyle.com/forums/attachm...1&d=1304556698 http://mitsustyle.com/forums/attachm...1&d=1304556698 http://mitsustyle.com/forums/attachm...1&d=1304556698 Holes tapped and cleaned: http://mitsustyle.com/forums/attachm...1&d=1304556698 |
Re: Project Lex
How do you clean the shavings that may have got into the oil pan?
|
Re: Project Lex
Lower and Upper oil pan? I'm confizzled. :confused:
I think some of the poopra guys use stock 3000GT ignitors as an upgrade also don't they? |
Re: Project Lex
I dropped the lower oil pan and put that newspaper that you see in the pics there to catch the shavings. Apparently some people do it without dropping the pan at all. I didn't want to risk that so that's why I dropped the lower pan so I could catch the shavings on that newspaper.
As for ignitors, yeah I'll cross that road when I ditch the stock distributor. For now I'm keeping the distributor. Try to do things 1 by 1 as much as I can to make troubleshooting as simple as possible. |
Re: Project Lex
Good call, looking good.
|
Re: Project Lex
9 Attachment(s)

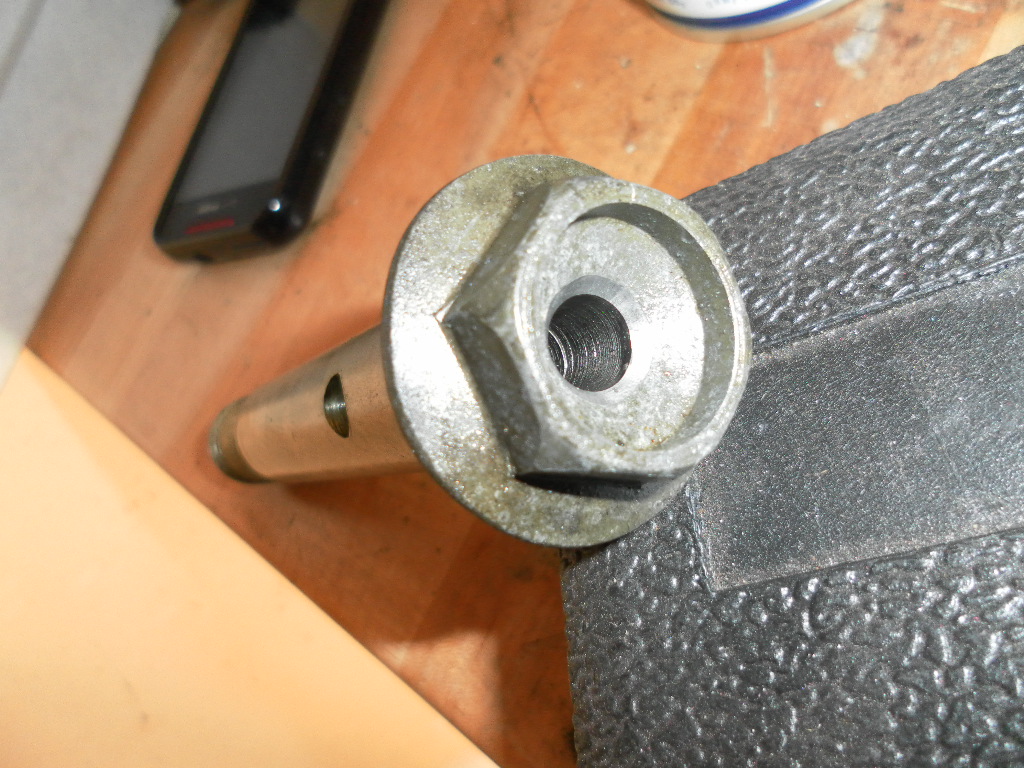

Drilled the oil filter union bolt to accept a 1/8npt fitting for my oil feed. You can either buy one for an IS300 for like $25 and it's already tapped, or just drill the stocker. And well, considering I already had a 1/8npt tap, and access to free drill bits and a drill press, that was an easy choice :)

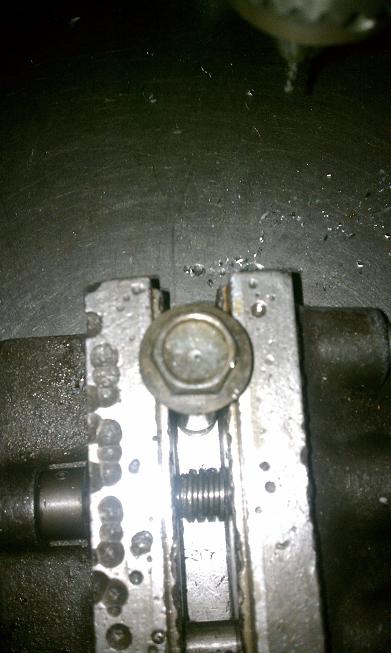

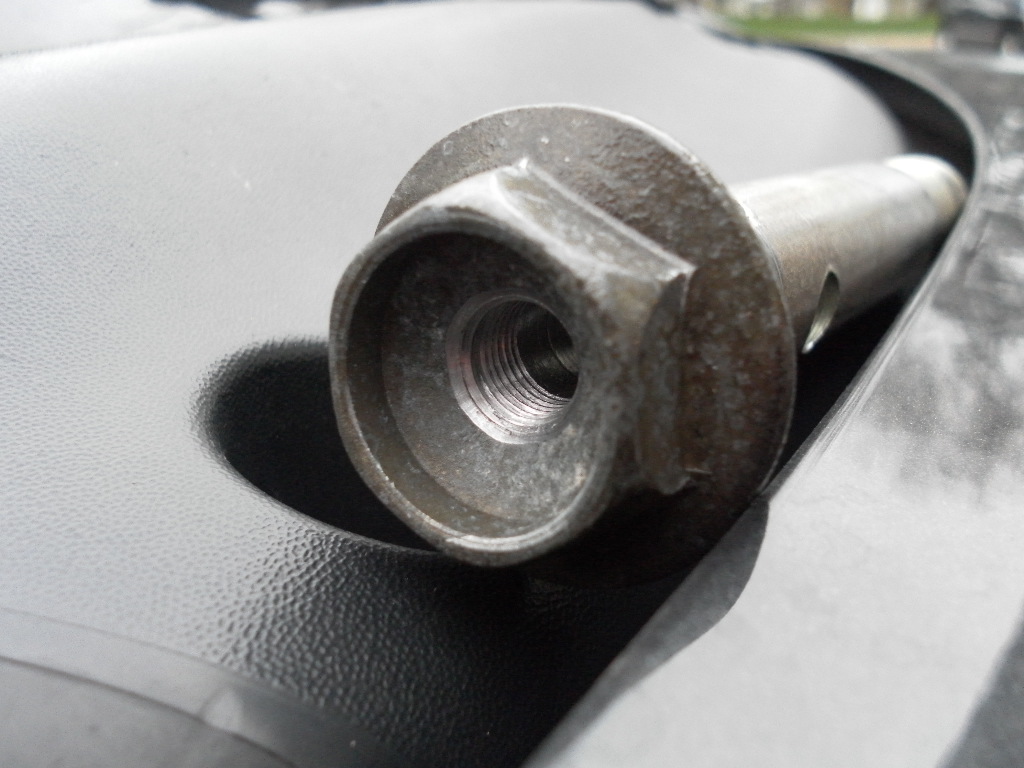

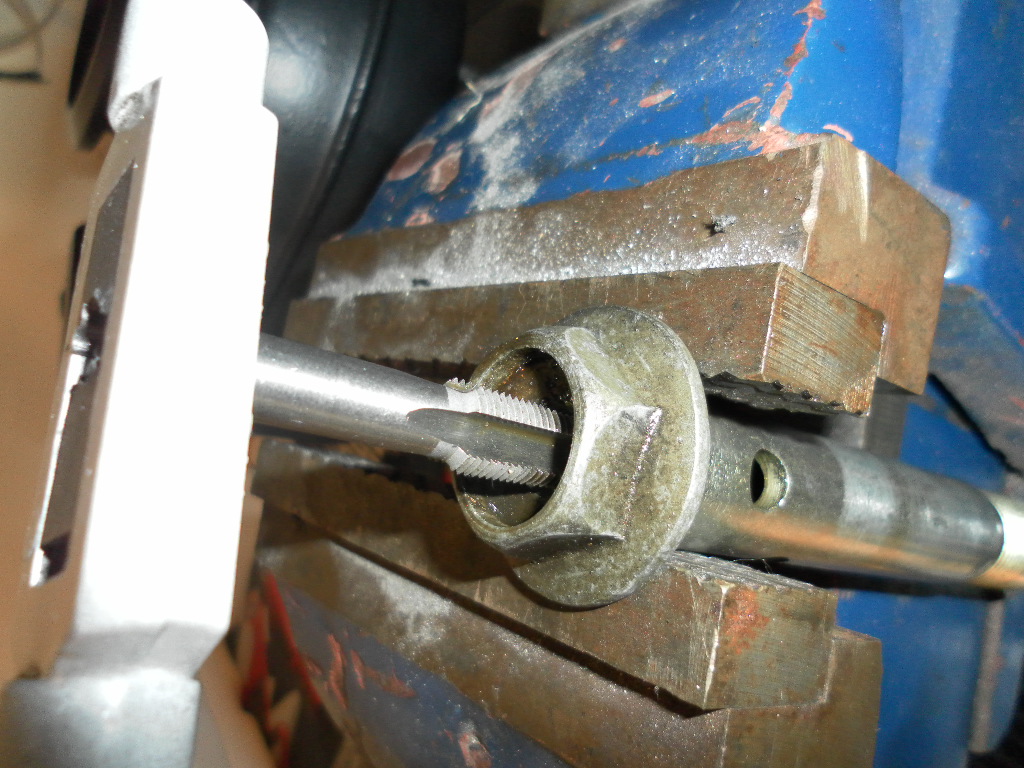

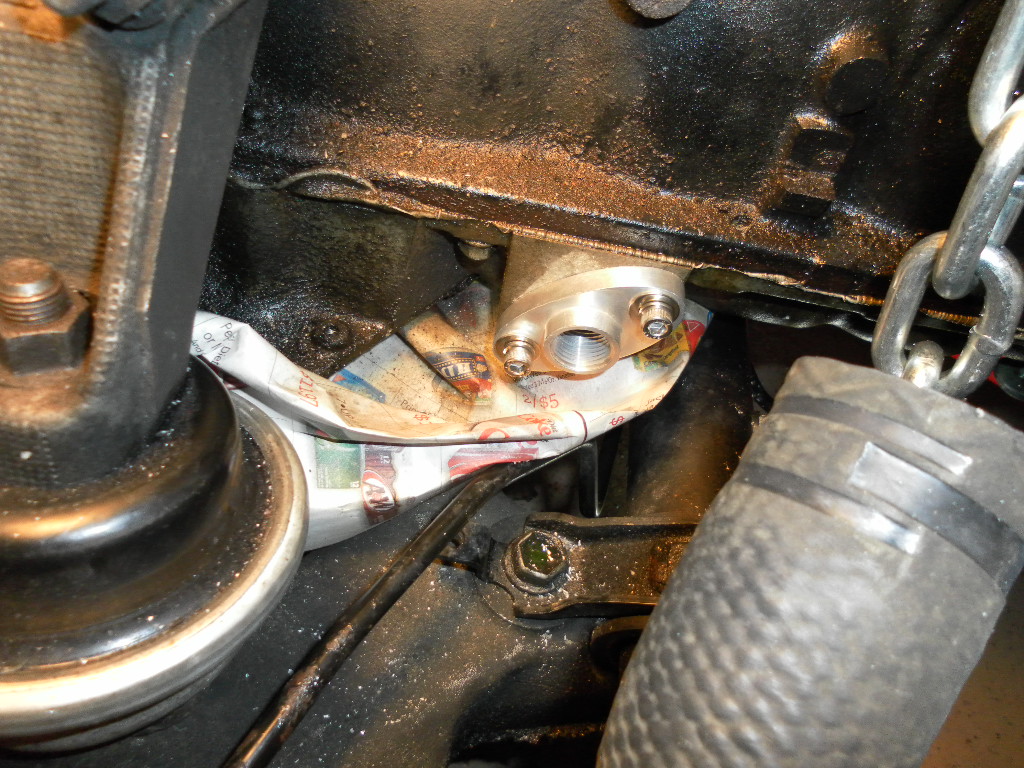

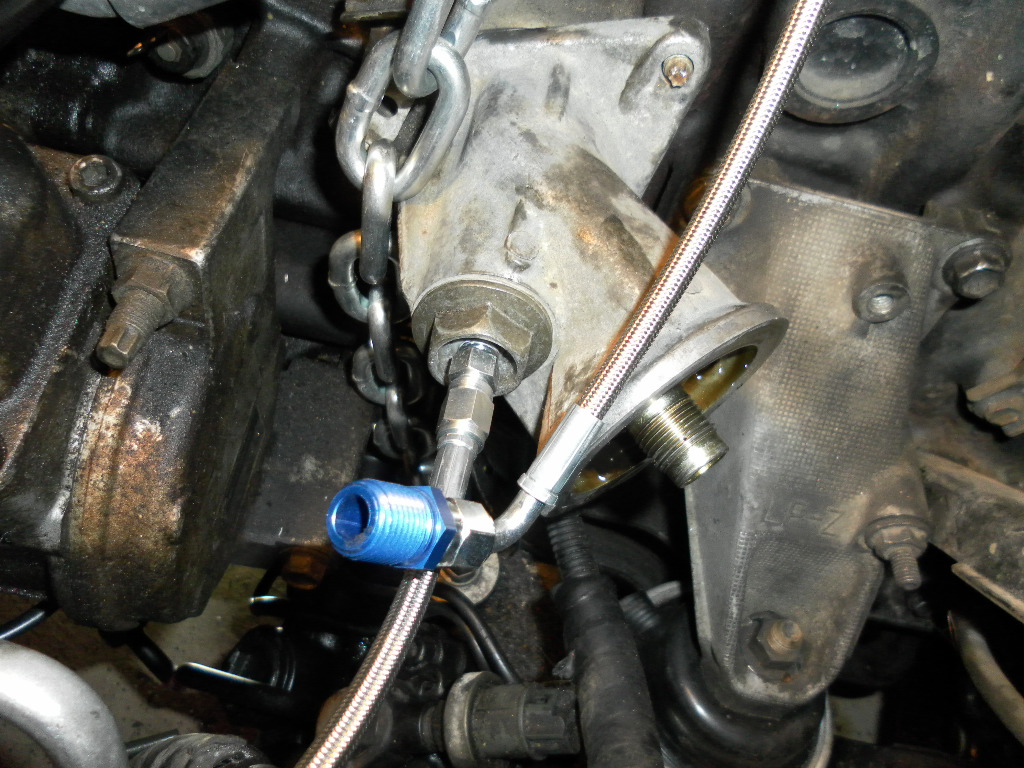

Lots o lube: http://mitsustyle.com/forums/attachm...1&d=1304993414 Pilot drilled: http://mitsustyle.com/forums/attachm...1&d=1304993777 Hole drilled using "R" size drill bit, and de-burred: http://mitsustyle.com/forums/attachm...1&d=1304993414 Tapped for 1/8npt. Wish I coulda tapped further but it was getting HARD. That look good enough to you guys?: http://mitsustyle.com/forums/attachm...1&d=1304993414 http://mitsustyle.com/forums/attachm...1&d=1304993414 1/8npt to -3AN fitting installed. Used some liquid pipe thread sealing compound on it: http://mitsustyle.com/forums/attachm...1&d=1304993414 OFH installed back on the car, badda bing: http://mitsustyle.com/forums/attachm...1&d=1304993414 Also installed the drain fitting. Need a gasket for that thing yet... http://mitsustyle.com/forums/attachm...1&d=1304993414 |
Re: Project Lex
Nice progress.
|
Re: Project Lex
Very nice! Keep us updated please :)
|
Re: Project Lex
Nice work on that bolt! Always nice to save some money and get your hands dirty at the same time!
|
Re: Project Lex
Nice. Good job and keep it going.
|
