Re: Make slowboy not so slow


Center stud is VERY important. I had that same issue on my car. Remove it, install RTV on it, and put it back on. I got RTV at work if you want me to do it for you.

-A. Swift

Re: Make slowboy not so slow


Using RTV on the center stud didn't do anything, still pisses oil. So I'm going to take off the manifold and helicoil it.

I did a compression test with my tester so I can compare the results to the old rings.

170-167-167-165

So that's almost an average 10psi across the board better than before, so it seems that the rings did seat pretty well. However, the smoking issue is getting worse. It's especially bad after letting it sit for awhile, just billows smoke out the exhaust. After awhile it'll smoke less, especially after I go WOT for a bit, then sometime later it'll smoke more randomly. I'm thinking the new valve seals were installed improperly. Either that or the turbo seals weren't installed right.

Re: Make slowboy not so slow


Try taking out the catch can and see if that helps any. If is geting pressuare back in to the the engine with messed up seals it could make it smoke more with it hooked up.

Re: Make slowboy not so slow


I'll try that in the next day or two.

During the ksports install tonight I verified the front swaybar was on the loose setting. Thanks Matt D for answering questions about adjustments. They were just on there really tight, had to use some solvent to break them loose. Set them about the same as they height as the tokicos were before. Still need to get on a completely flat surface to level it out. Test driving begins tomorrow, if they're too stiff the Tokicos go back on.

Re: Make slowboy not so slow


These things aren't bad at all. Right now I have them on stiffness 24 out of 36 on all four, and it's a tad bouncy, I will probably bump them up a few to 27 or so. I want to see what 10 feels like, haha. Streets of downtown Minneapolis might be another story though.

Didn't do too much cornering, but the few I did the car feels a lot snappier. I'll do more testing on the way home.

Re: Make slowboy not so slow


I found out the center section of the turbo is bad, so that could be the cause of the oil burning. Unhooking the catch can setup didn't help at all.

Since the car is down for the week, I did quite a bit of work I've been too lazy to get around to the past year or two. My car has had the SRS and AntiLock dash lights on for a long time now, both computers are toast.

Two months ago I removed the braking portion of the ABS, but today I took up the carpet and passenger foot rest and took out the computer and a couple feet of wiring.

http://mitsustyle.com/forums/attachm...1&d=1242092708

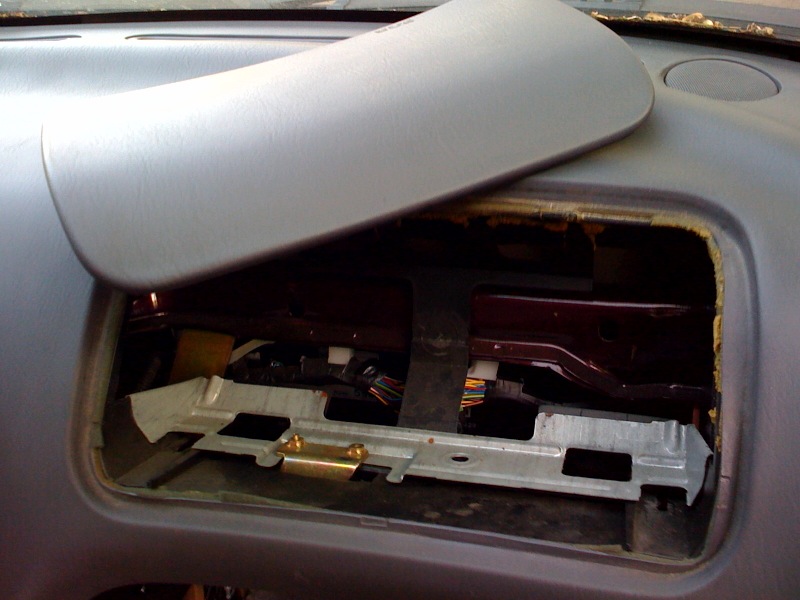

Removed the passenger airbag:

http://mitsustyle.com/forums/attachm...1&d=1242092708

Here is the cover about to go back in:

http://mitsustyle.com/forums/attachm...1&d=1242092708

Airbag computer:

http://mitsustyle.com/forums/attachm...1&d=1242092708

And a bunch of wiring that was no longer needed. Left group was for the airbag computer, right group was for an unknown harness under the passenger seat. The only thing I saved out the entire bundle was the ebrake light cable (hanging yellow)

http://mitsustyle.com/forums/attachm...1&d=1242092708

Re: Make slowboy not so slow


Are you done buying questionable used parts yet? :score001:

Re: Make slowboy not so slow


The right group is wires for the stock infinity amp under the passenger seat.

Re: Make slowboy not so slow


^what he said.

Looks like this thing has come quite a way since the days of the bees.

Re: Make slowboy not so slow


Thanks. At first I thought it was for a powered passenger seat, but there's too many wires. Also, that explains why the red wire that's hanging had power without the key on. It sparked on me when it touched a ground, lol.

Re: Make slowboy not so slow


LOL! :) I wasnt going to say anything...

Re: Make slowboy not so slow


Meh, it was over a year ago, I'm not too concerned. I got it for $550 under new, so a year of use and $350 fixing up isn't the worst case scenario in my book. If I had more money a year ago I would have bought new, but that wasn't the case. Yes I learned my lesson about used turbos.

Oh yea, I figured out why that bottom center manifold hole was leaking oil everywhere. I thought it was because the threads were stripped, but it's because the bolt threads were so worn down it didn't grab the threads. I put a good quality longer than stock stud in there and it seals up really well, problem solved! Since the other studs are all rusty, I think I'm going to get all SS studs and locking nuts to make it look nicer.

Re: Make slowboy not so slow


Wow, been awhile since I posted in my thread. Mostly because not much has changed. Since I drove back to Minnesota in early June, I've driven my car maybe 5 or 6 times, mostly to meets. The ironic thing is that aside from the dead battery issue from letting it sit too long, the car has worked the entire time, just no need to drive I guess.

Fixed the coolant leaking and disappearing issues, and I no longer have oil leaking/burning issues. I've driven a little over a thousand miles and the oil level is still at the top, before it would have burned a quart by now.

About 2 or 3 weeks ago I took off all my intake and intercooler pipes to have them powdercoated black. Also did a VC that says mitsubishi, but had the letter paint ground off so they're shiny silver. I noticed all the pipes had a ton of oil buildup in them, I suspected it was remnants of two bad turbos that leaked oil everywhere, all stuck in the intercooler still. I got all the pipes back last week, and finally got around to removing the bumper and intercooler tonight, along with a couple other pipes.

Right now the intercooler is still draining oil, I'm going to wash it out with some solvent later on and hopefully get it re-attached tomorrow. The only bad part is that when my bumper was last put on, the shop used super rusty bolts and all but two broke right away when I tried to get them out, so I have a bit of drilling to do, but shouldn't take too long.

I'm hoping this powdercoating will make the engine bay look a lot nicer, I'll post pics when I have everything put back together in the next day or two.

Re: Make slowboy not so slow


Good to hear! I would use gas for cleaning out the front mount. That's what I used on mine and it worked great.

Re: Make slowboy not so slow


From tuning today.

Boost 28ish, spike to almost 29 and slightly fading to 27.
http://www.dsmstyle.com/photopost/da...dyno_boost.jpg

Comparison to last year. Notice the 400rpm better spool, plus an extra 17hp with basically the same boost level.
http://www.dsmstyle.com/photopost/da...comparison.jpg

And just for fun:
http://www.dsmstyle.com/photopost/da...o_shootout.jpg


The cruise shall be fun indeed :)

Re: Make slowboy not so slow


WOOOOOOOOO!!!!!!!! nice numbers! congrats

Re: Make slowboy not so slow


Nice numbers Andrew! Congrats.

Re: Make slowboy not so slow


Oh, I should mention the turbo is maxed out. At 21psi I was making 356hp I believe, the gains were diminishing with every psi added. We had it at 30 but backed it to 28. Gotta get me one of those HTA setups... lol.

Re: Make slowboy not so slow


Niiioooce!

Re: Make slowboy not so slow


Congrats on the numbers, nice setup and clean car! time to get a bigger turbo haha

Re: Make slowboy not so slow


Awesome man.

Re: Make slowboy not so slow


sooooo this is an old school red? 7cm? 8cm?

Re: Make slowboy not so slow


Awesome andrew! Glad everything went ok today, I was really worried last night when we were fiddling with it! Great power, I see some more testing & comparing in our future :)

Re: Make slowboy not so slow


Yep, old school red, unfortunately the 7cm housing.

Re: Make slowboy not so slow


Blast from the past here. The person who bought my car sold it for $1900 with a bad starter and battery, and the new owner contacted me today. Apparently the turbo is going out and I think the guy I sold it to messed up the tranny because he didn't know how to shift at all. But basically the car is still the same setup, he cut the front bumper to show most of the FMIC.

Still glad I went to more displacement, even if the new car isn't any faster.

http://www.dsmstyle.com/photopost/data/500/talon5.jpg

Re: Make slowboy not so slow


Too bad the guy you sold it to didnt know how to drive, as well as modified the bumper, that looks gross. haha

Re: Make slowboy not so slow


sold it for 1900?? wow

How much did you sell it for originally?

Re: Make slowboy not so slow


I agree on the bumper. Funny that it's still missing the Eagle emblem. It flew off on the highway a couple months before I sold it.

I got 8k for it, I think that was in April 2010.

Re: Make slowboy not so slow


OMG!, $1900 thats sick.

Your new cars > that dsm anyday of the week.

Re: Make slowboy not so slow


Wow, I would've bought it for 1900.

Re: Make slowboy not so slow


Me too! I really don't need another car, but it would have been an easy couple grand profit.
